A 3D Finite Element Analysis (FEA) was performed for three vessels, their internal coils, and their interconnecting piping systems. The operating condition of the reactors includes the effects of the internal vessel pressure, internal coil pressure, thermal gradients, agitation loads, and gravity forces.
-
- Plan View of Three Vessels with Piping Attached
-

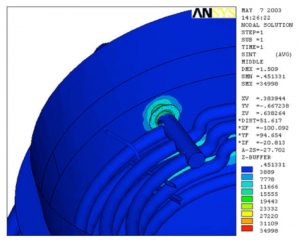

- Stresses of Pipe Nozzle Attachment to Shell Wall
-
- Stresses of Pipe Nozzle Attachment to Shell Wall
-
- Stresses of Pipe Nozzle Attachment to Shell Wall
